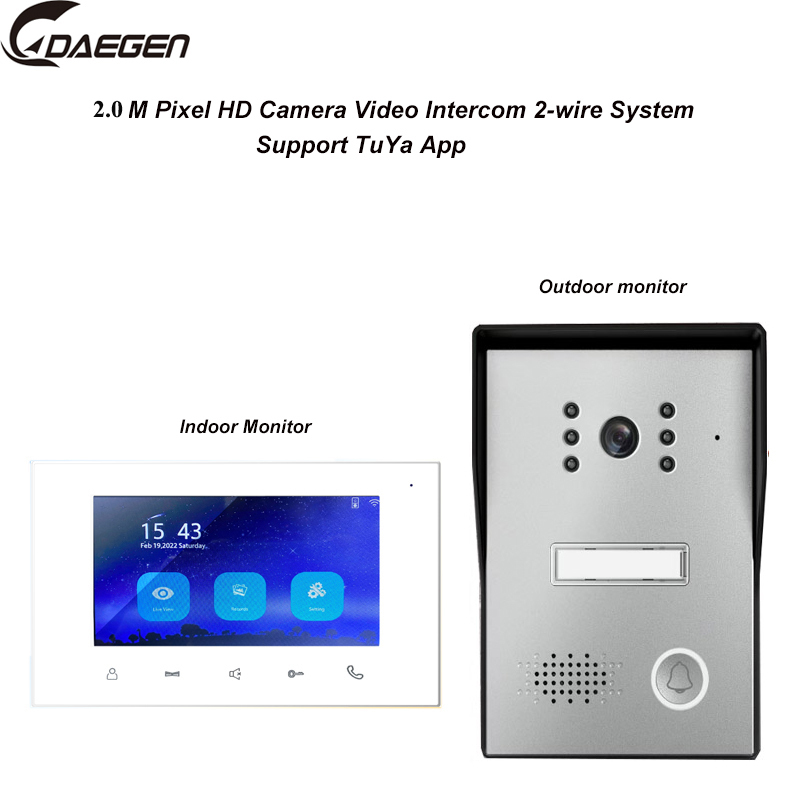

This is 2 wires Intercom System. Simple wiring, only need to use twisted-pair wire can be installed the system, low cost, strong anti-interference ability, long transmission distance, suitable for the transformation of old buildings.

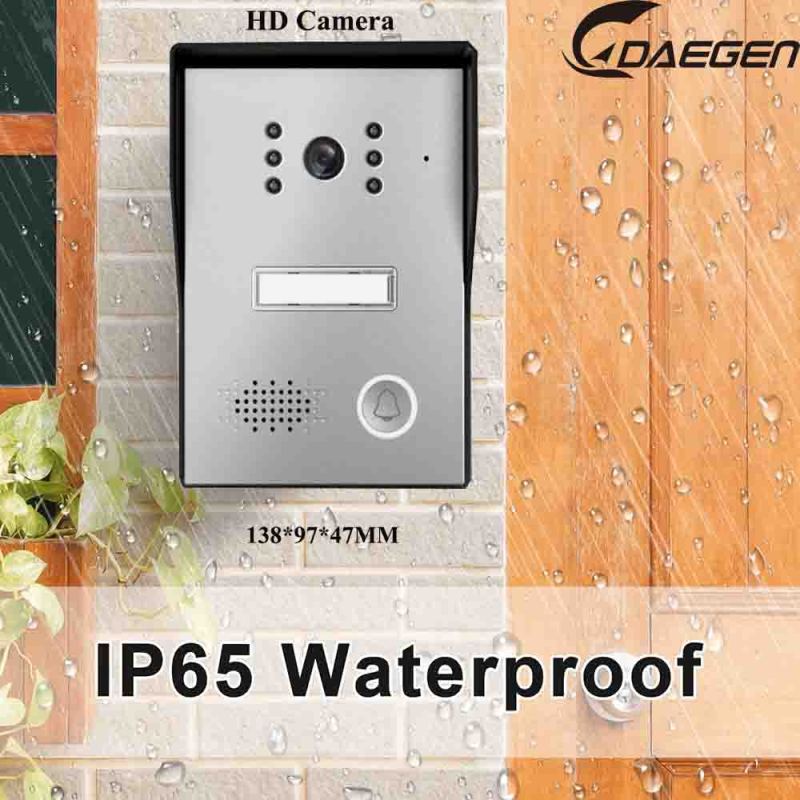

When visitors call residents, the camera can automatically capture pictures, which is convenient for residents to check the information of visitors. The Out doordoor doorbell has below features:
Support two-way communication.
Support HD 1080P video intercom and real-time monitoring.
Support APP calling outdoor station.
Remote unlocking via the client or APP
Camera Type: CMOS
Pixel: 200W
View Angle:130°
Fill-in Light Type: infrared
Resolution Ratio: HD 1080P
Working Voltage: DC 24~30V (powered by indoor monitor)
Working Current:: <150mA(DC 24V)
Storage Temperature: -40℃～70℃
Working Temperature: -25℃～55℃
Dimension(L×W×H): 145×88×40mm
Indoor Monitor
◆Support real-time monitoring, and humanoid detection records and alerts will be send to TUYA APP. Easy to check the monitoring through TUYA APP at anytime.
◆Support two relays.
◆Support different ringtone
◆Support for multilingual menus. This system support six different languages： English，Russian, French, Spanish, German and simplified Chinese
◆Support humanoid to effectively avoid misinformation from motion detection.
◆The indoor display can connect up to 5 mobile APP users, and mobile phone support monitoring , unlocking and it can also access to the communication through TUYA Smart apps which means you can talk with your visitors anytime.
◆Indoor monitoring can connect to wireless WIFI to connect to the cloud.
Displaying Screen：7 inch HD IPS screen
Resolution: 1024*600
Working Voltage : DC 15~24V(Powered by an indoor monitor)
Standby Current：≤ 160MA
Working Current: ≤ 220mA(DC 24V)
Storage Temperature: -40℃~70℃
Working Temperature: -25℃~55℃
Dimension(L×W×H): 230x140x26(H) mm
