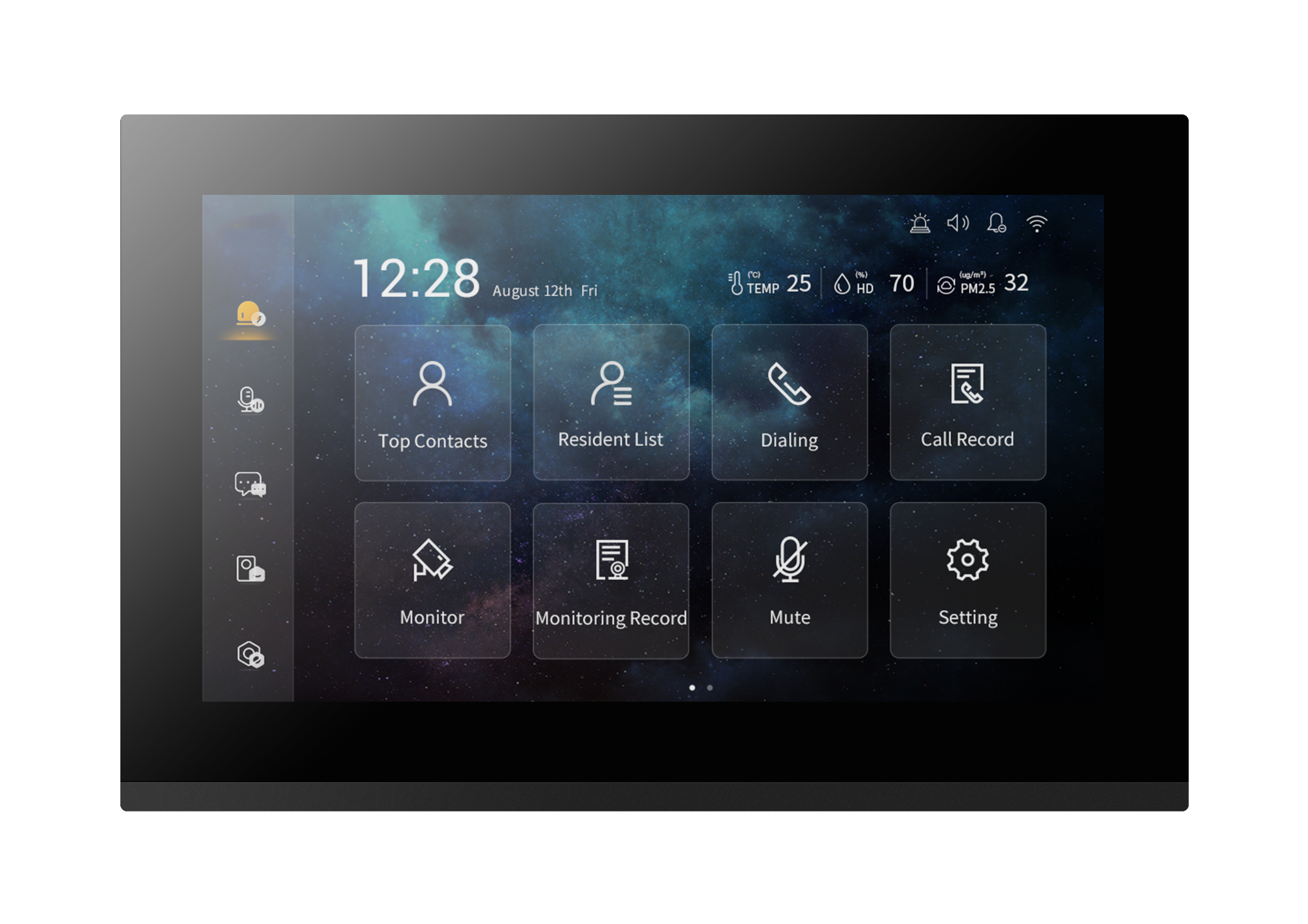

7-inch capacitive touch screen digital indoor monitor based on SIP protocol, with 1024*600 HD resolution. It supports dual power supply: DC24V and standard 48V POE. Two system modes are available for multi-unit community and single villa projects. This all-in-one device integrates video intercom, remote video monitoring, visitor voice message, missed call auto answering, 8-channel security zone alarm, RS485 whole-house smart home control and cloud mobile APP remote linkage. It supports multi-substations per household, resident-to-resident call, black & white list visitor filtering. Matched with outdoor door stations and IP cameras, it realizes full-house visual security management. Ultra-thin 14.5mm body, embedded installation with standard 86 junction box, widely used in residential buildings, office buildings, villas and commercial parks.
| Screen|7-inch Capacitive Touch Screen, 1024×600|
| Dimension|182×119×14.5mm|
| Power Supply|DC24V / 48V POE Power Over Ethernet|
| Static Current|≤80mA|
| Working Current|≤200mA|
| Security Zone|8 security zones Z1-Z8, support NO/NC detectors|
| Smart Home|RS485 Bus Interface|
| Out Power|+12V Max 200mA for sensor power|
| Working Temp|--10℃ ~ +45℃|
|Installation|Embedded wall mount with standard 86 box|
| Install Height|1.5m height from ground|
| Protocol|Standard SIP Protocol|
| WiFi|Built-in WiFi, support cloud intercom APP|
1. 7-inch HD capacitive touch screen, customizable wallpaper & screen saver, smooth starry sky UI interface
2. Full digital SIP network architecture, POE power supply simplifies wiring, stable HD audio & video transmission
3. Two system modes: auto-network for large communities & simple auto-setup for single villas, fit all engineering projects
4. Complete visitor management: resident intercom, voice message, missed call auto-answer with recording, snapshot call records
5. Black & white list function to filter unknown visitors; blacklist blocks unwanted calls, whitelist only allows trusted contacts
6. 8 security alarm zones, compatible with door/window, PIR, gas detectors for real-time security alert
7. Integrated RS485 smart home control: light, air conditioner, floor heating, fresh air, curtain, socket, water heater, background music, customizable scene modes
8. Remote real-time monitoring for outdoor door stations & IP cameras, snapshot video storage
9. Cloud intercom mobile APP linkage, answer visitor calls, unlock door & view camera remotely anytime
10. Ultra-thin 14.5mm panel, standard 86 junction box for easy renovation & new construction, ergonomic 1.5m installation height
11. Physical shortcut side buttons for intercom, monitor, message and setting, easy for elderly and children
Application Scenarios
Residential compound, high-rise apartment, single villa, townhouse, office building, park apartment, hotel apartment, commercial park, old community intercom renovation, whole-house smart home matching projects
