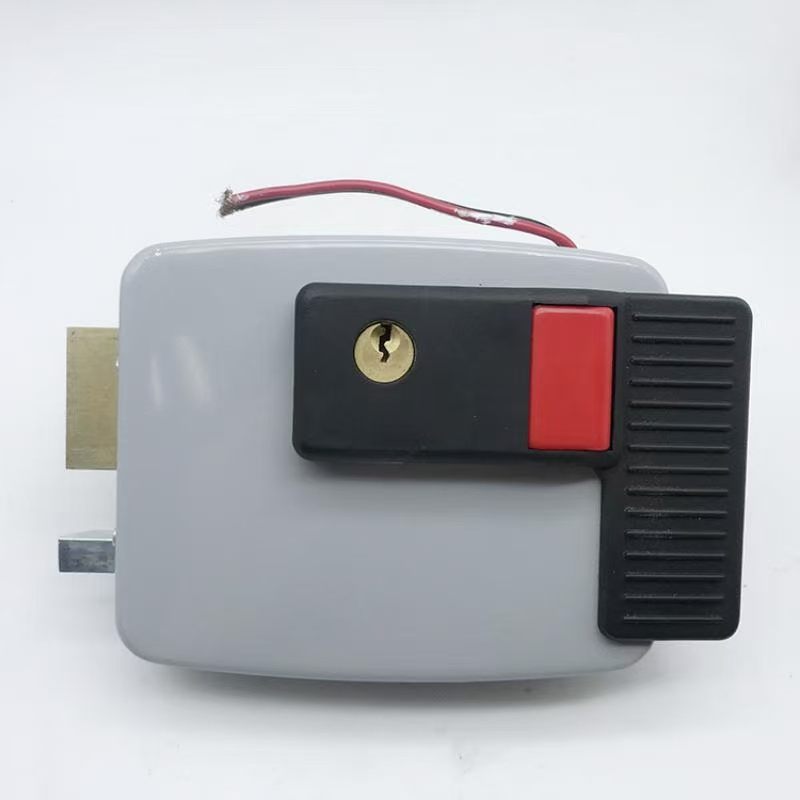

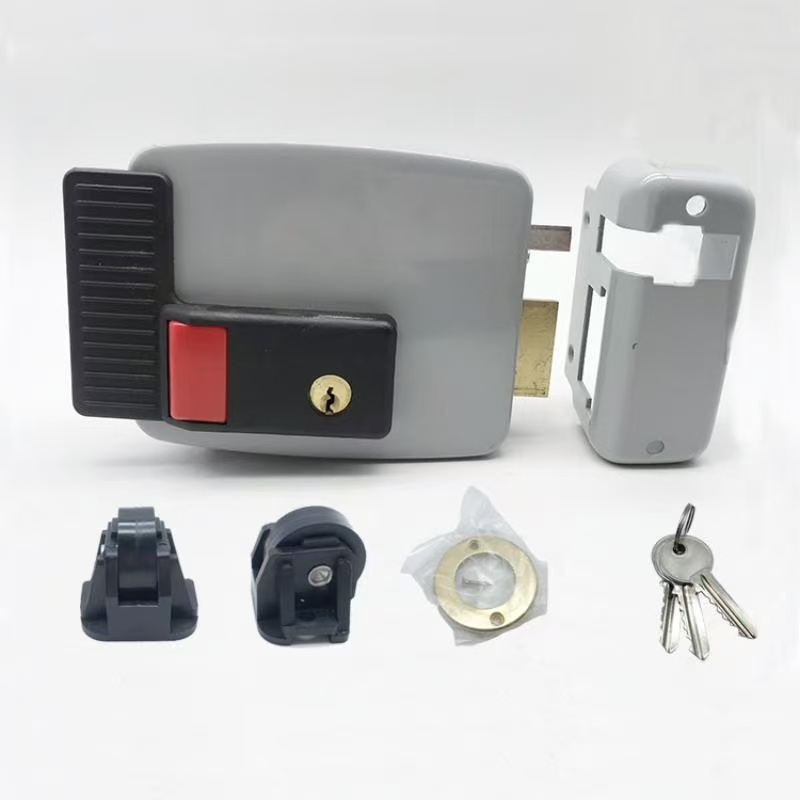

European-style rim electric lock complies with EU EMC electromagnetic compatibility directives. Designed for heavy-duty entry doors and building unit doors. Equipped with patented dead-locking latch and STOP stop device, adjustable electric latch release, compatible with four door opening directions (inward/outward, left/right). Standard DC12V power supply, stable and wear-resistant structure. It only needs to be matched with a safety transformer, widely used in villas, community unit doors and commercial passage doors, compatible with all access control and intercom systems. Remove the patented red pin for light doors to achieve smoother closing. Easy installation and commissioning, electrical safety meets European standards.
Rated Voltage: DC 12V
Rated Current: 2.3A
DC Resistance: 3.1Ω
Frequency: 50/60Hz
Insulation Class: Class F
Service Type: Intermittent service
Transformer Power: ≥15VA
Minimum Wire Cross Section: 1mm²
Max Distance Between Lock & Strike: ≤7mm

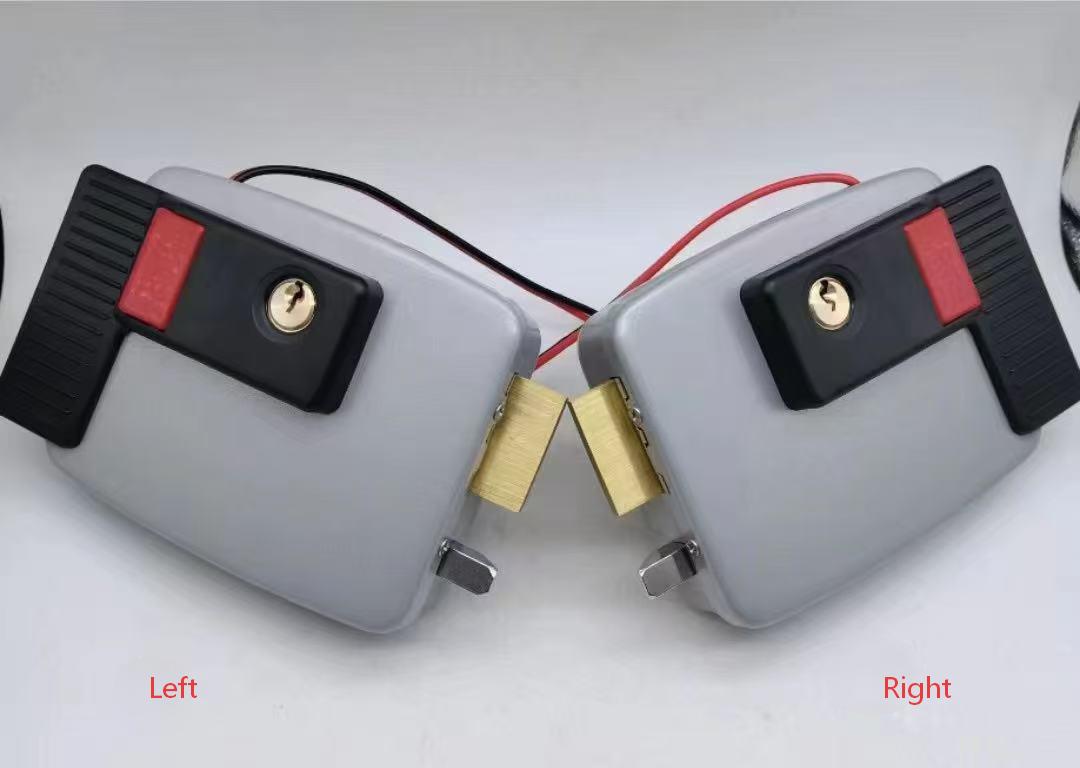

Door Direction Types
1. Inward right hand
2. Inward left hand
3. Outward right hand
4. Outward left hand
Core features of the product
1. Comply with EU EMC directives EN50081-1 & EN50082-1, suitable for European export

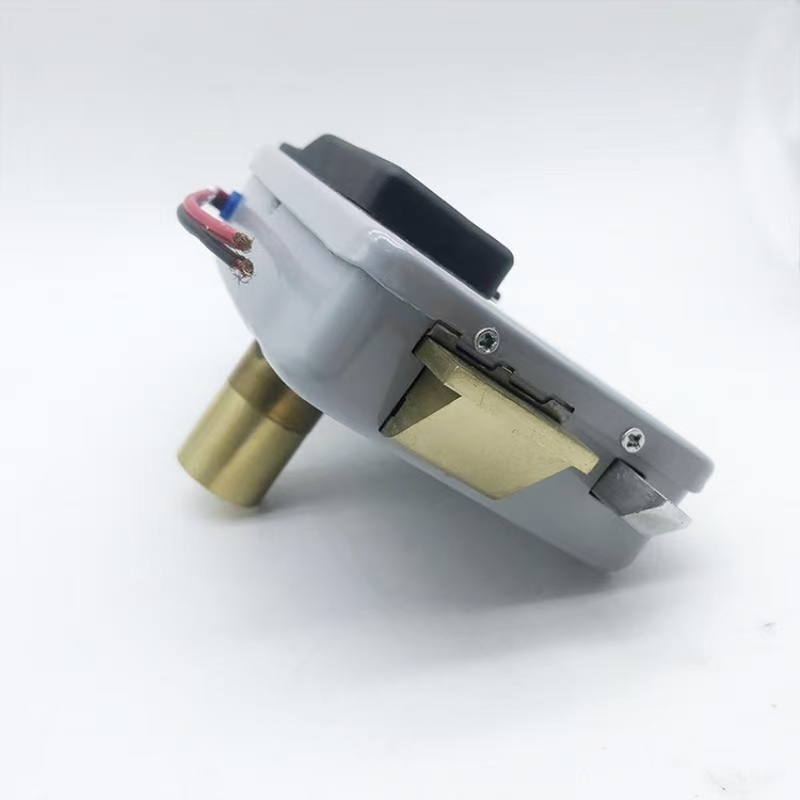

2. Patented anti-jam latch, stable operation within 7mm gap between lock and strike plate
3. Built-in STOP device: press button A and turn key to hold door open temporarily
4. Adjustable electric release screw, solve unlocking failure caused by insufficient input voltage
5. Heavy-duty body for thick security doors; removable red pin for smooth closing on light doors
6. Press-type terminal wiring, fast cable connection without soldering
7. Standard DC12V, matched with ≥15VA safety transformer, short-circuit protection
8. Upside-down installation forbidden, avoid mechanical dislocation, low failure rate
Application Scenarios
Community Unit Security Door, Villa Entry Door, Commercial Passage Door, Office Building Entrance, Intercom Access Matching Lock, European Engineering Projects, Retrofit Access Control for Old Metal Doors
