Product Overview

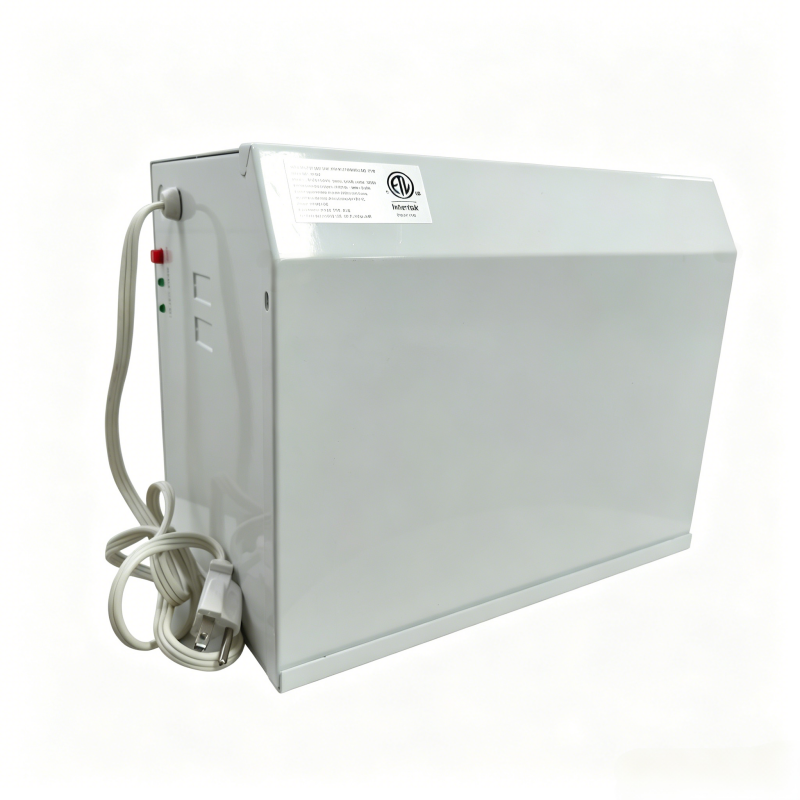

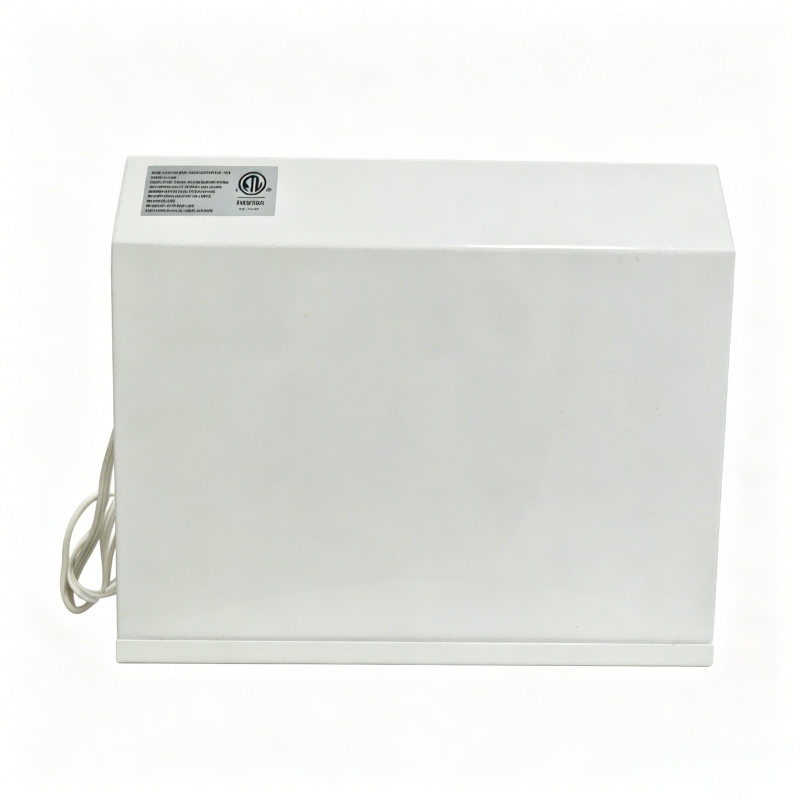

LH-06 is a high-performance emergency battery-powered generator with a maximum rated output power of 36W. It is compatible with 12V sealed lead-acid batteries. The standard emergency operation time is 30 minutes, and the continuous discharge time under full load exceeds 24 hours.
The entire machine is compatible with 120/347VAC voltage input. It has passed ETL performance certification and adopts a 18-gauge moisture-proof enclosure, suitable for damp areas such as underground parking lots, machine rooms, and warehouses. It is compatible with dual-voltage universal LED remote lamp heads installed on the top, and an alternative side-mounted installation option is also available for flexible installation. It is widely applicable to emergency lighting backup power supply scenarios in commercial and industrial settings.
Core Features
1. Affordable 36W low-power output, 12V DC emergency power supply
The maximum stable 12V DC emergency power supply of 36W, suitable for small and medium-sized emergency lighting projects. Bulk purchase costs are lower. 2. Universal 120/347VAC dual-voltage input
A 60Hz switchable power supply that can operate on 120/347VAC, suitable for all mainstream North American commercial power grids, without the need for an additional transformer. 3. 12V maintenance-free sealed lead-acid battery
No daily maintenance required; through an automatic current-limiting charging system, it can be fully charged within 24 hours, extending battery life. 4. 18mm solid cabinet, suitable for humid environments
Thick cabinet with a moisture-proof structure, meeting the installation requirements for humid and moist working environments. 5. ETL performance certification, compliant with North American standards
Passed ETL performance tests, fully applicable to commercial buildings, retail, offices, and industrial projects. 6. Flexible installation structure

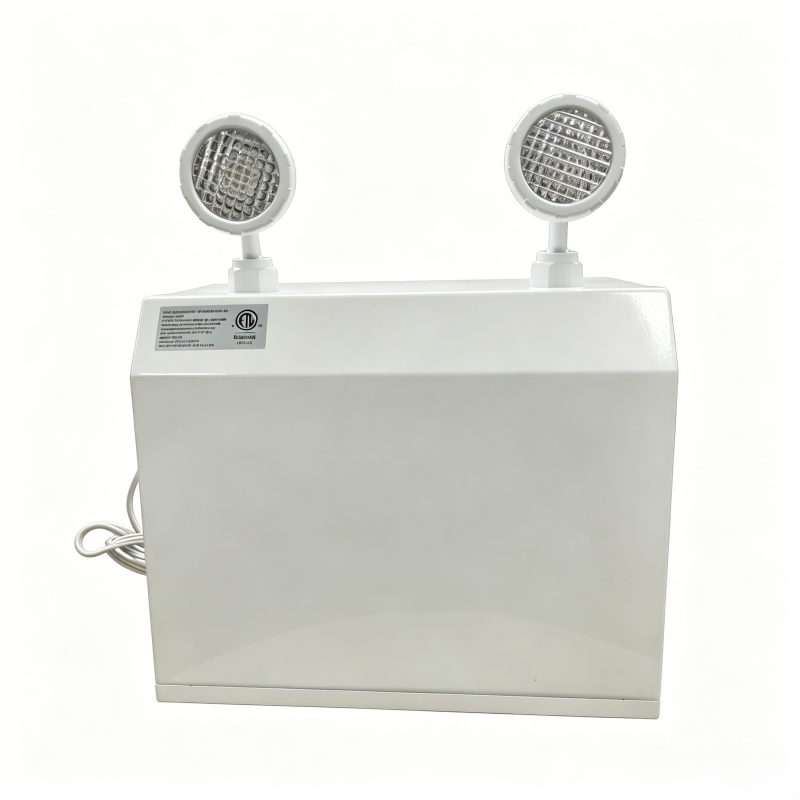

Standard top-mounted dual LED remote double lamp heads; the cabinet is pre-drilled with spider-shaped openings, keyhole hanging slots, and multiple wire openings; the side installation can be customized according to requirements. 7. Intelligent solid-state circuit, with comprehensive safety protection
Efficient and rapid recovery charging system, equipped with instantaneous test buttons, AC power and charging indicator LED lights. Built-in circuit lockout protection and low-voltage cut-off protection to prevent battery damage.
Electrical Specifications
- Input Voltage: 120/347VAC 60Hz (field selectable)
- Input Rating: 36W, 600mA / 200mA
- Max Emergency Output: 36W, 12VDC
- Standard Emergency Duration: 30 minutes
- Full-load Discharge Time: More than 24 hours
- Full Charging Period: 24 hours
- Built-in Battery: 12V Maintenance-free Sealed Lead-acid Battery
- Operating Temperature Range: -10°C ~ 55°C
Mechanical Specifications
- Cabinet Material: 18 Gauge Steel

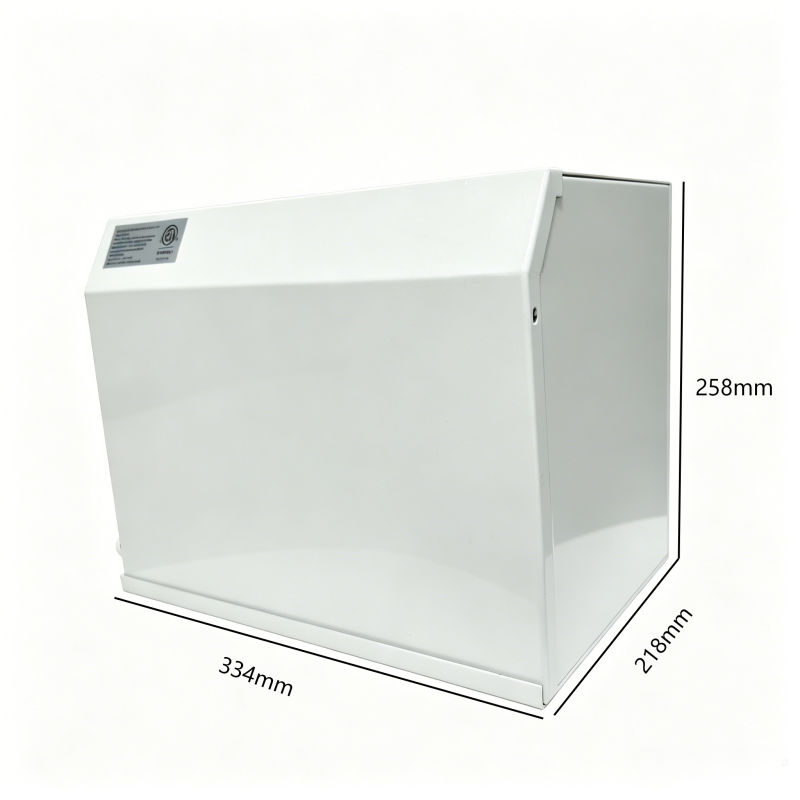

- Overall Dimension: 334mm × 258mm × 218mm
- Standard Accessories: 120VAC power cord, dual universal voltage LED remote lamp heads
- Mounting Method: Standard top lamp head mounting, optional side mounting

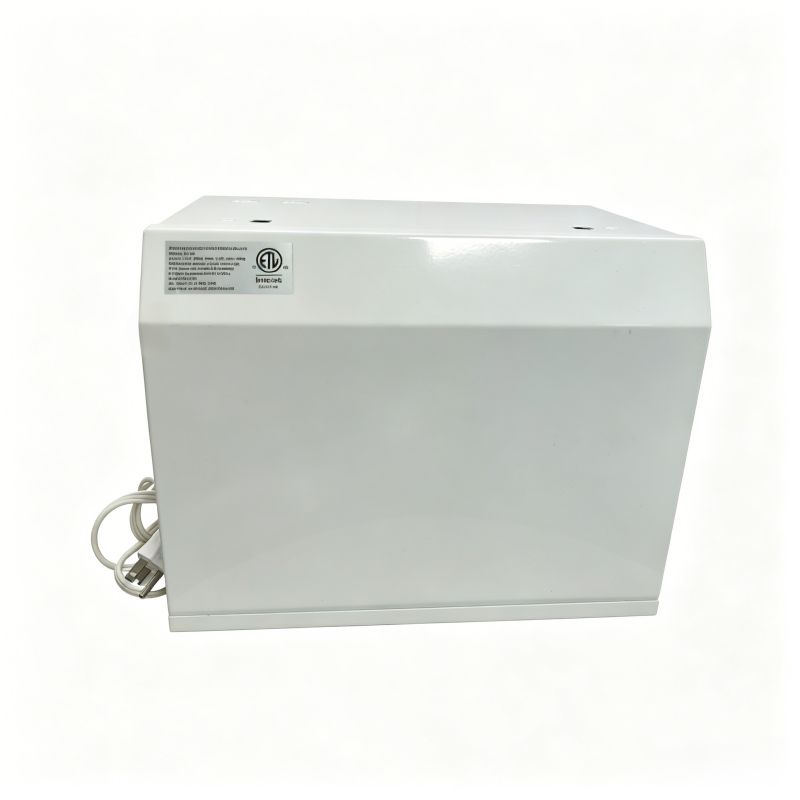

- Cabinet Design: Universal spider knockout pattern, keyhole mounting slots, multiple conduit entry knockouts
Circuit Functions
- Fully automatic current-limited precision charger
- Manual momentary push test switch
- Dual diagnostic pilot LEDs (AC power indicator + charging status indicator)
- Line latched protection & low voltage protection
- Full solid-state circuit design, low failure rate
# Certification
ETL Performance Certified
Application Scenarios
- Commercial complexes, office buildings & damp underground parking lots
- Industrial plants, mechanical equipment rooms & logistics warehouses
- Public facilities, corridors & fire escape emergency lighting systems
- North America commercial emergency backup power projects
